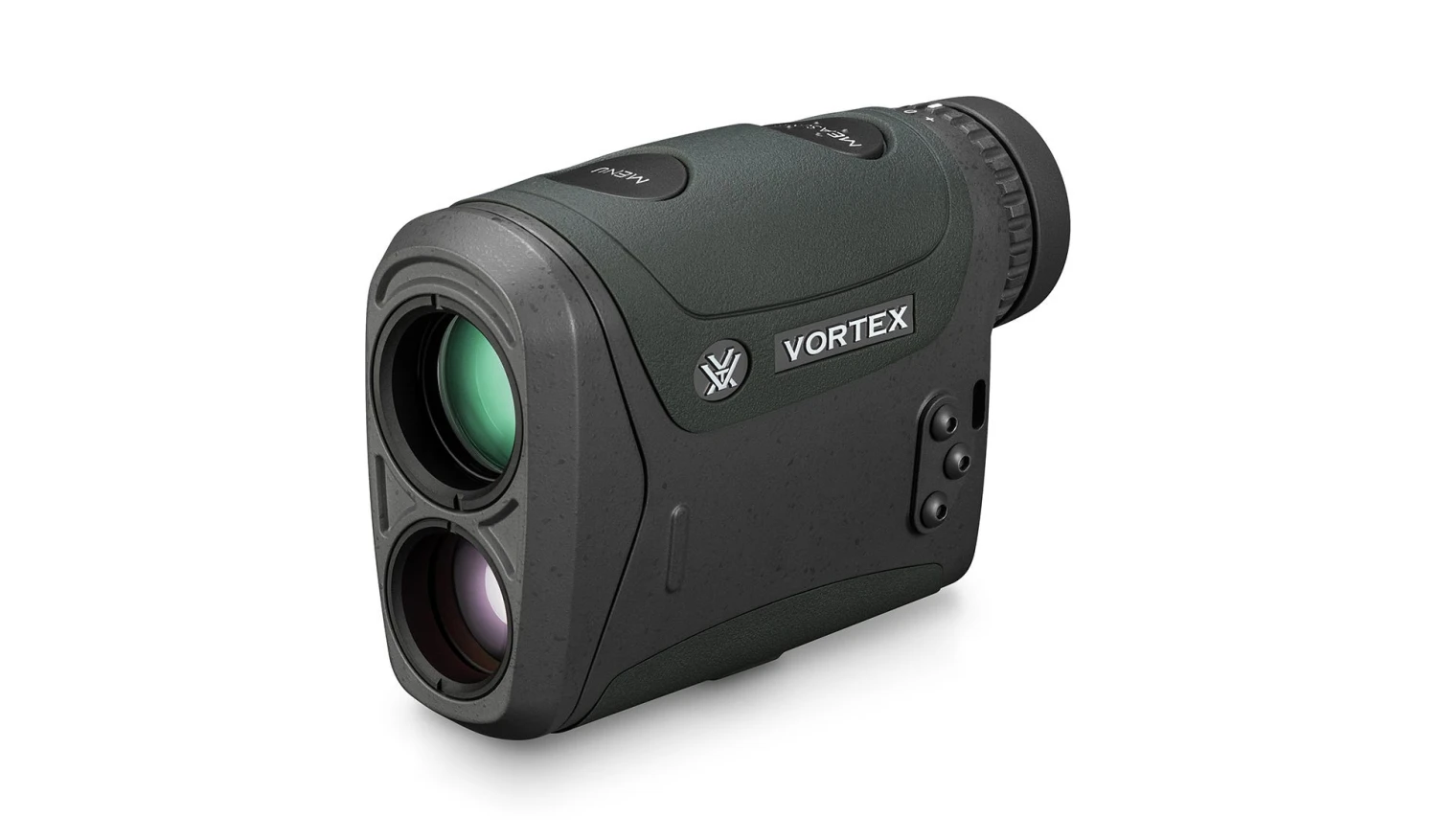

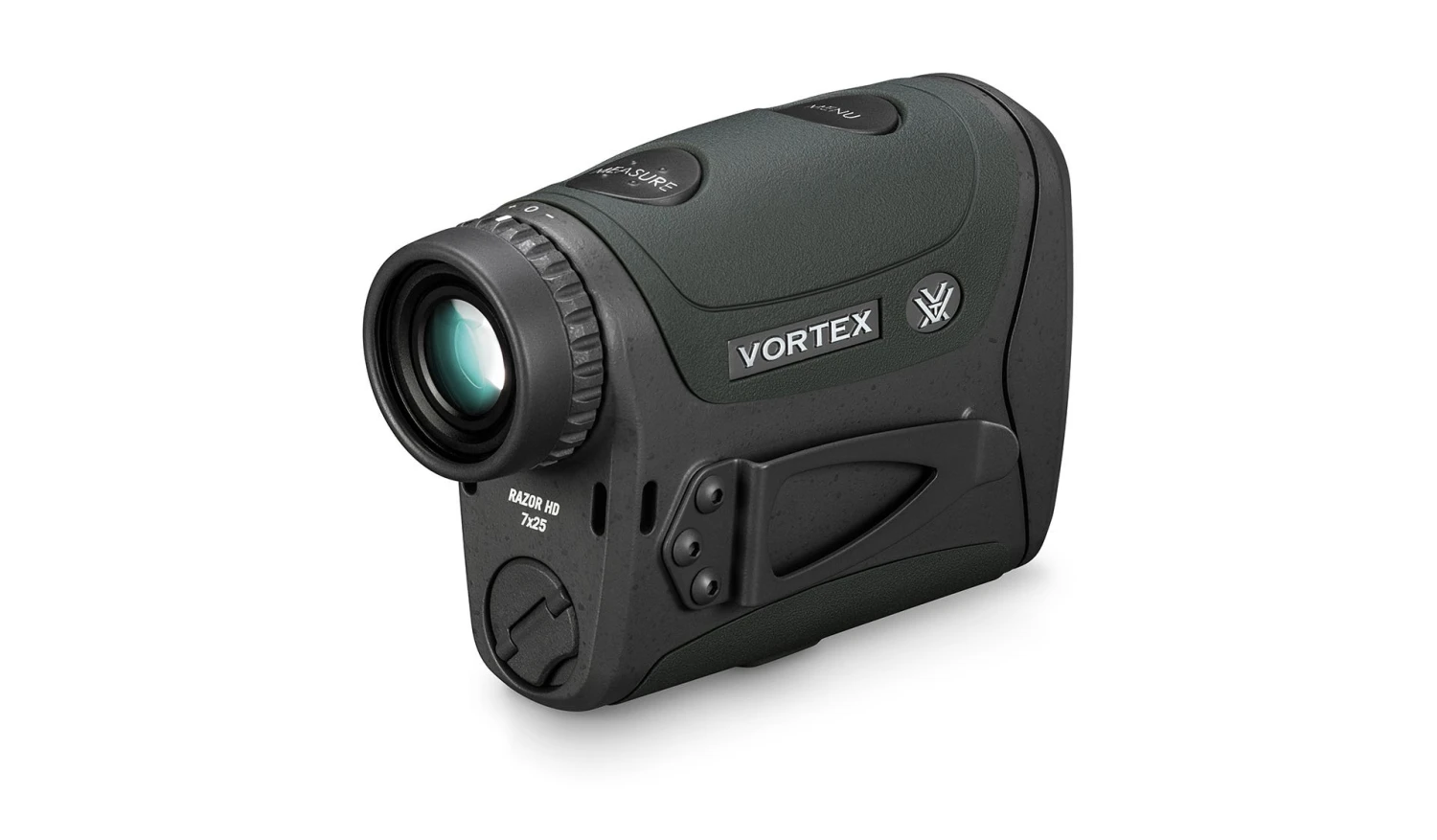

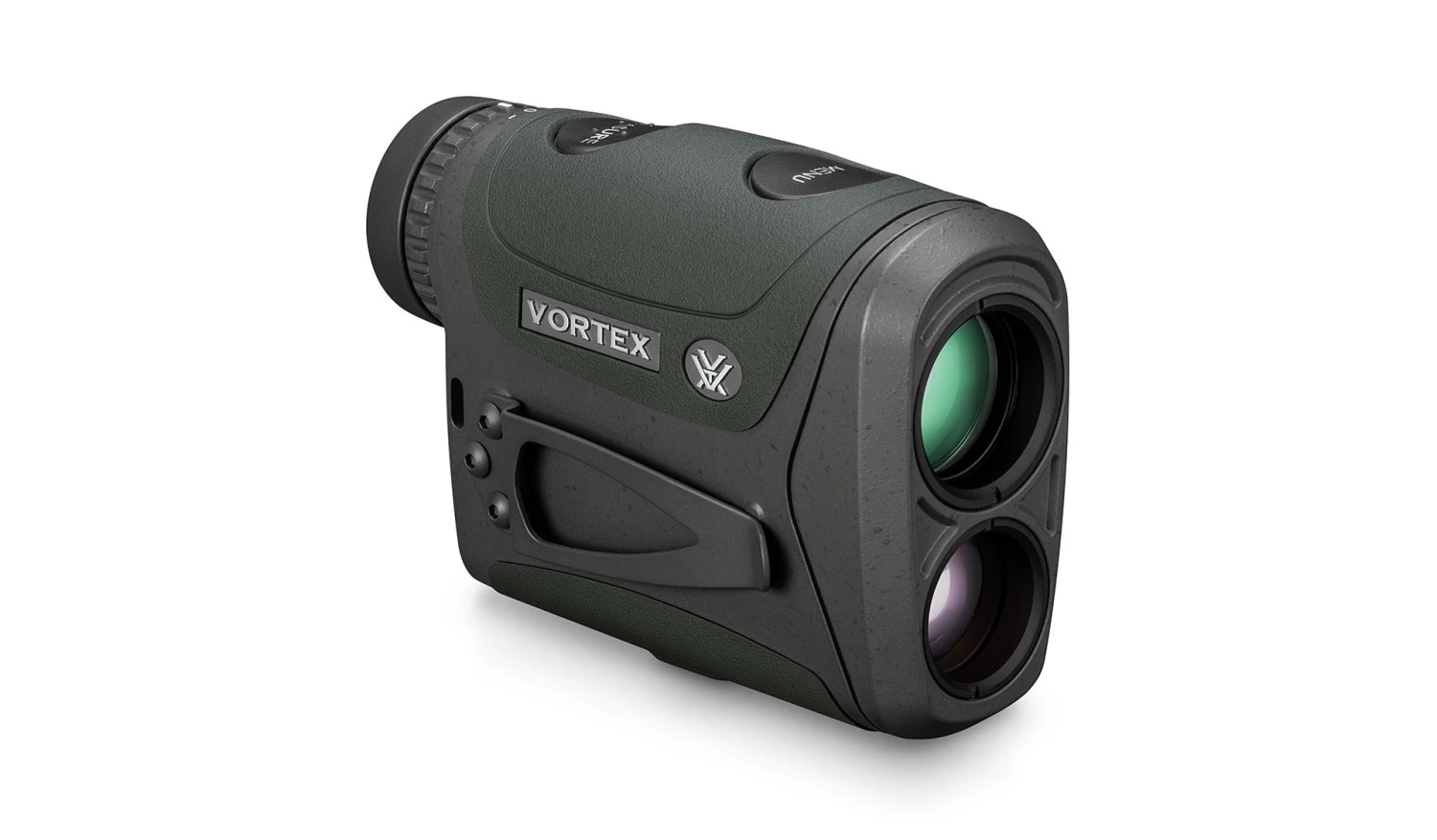

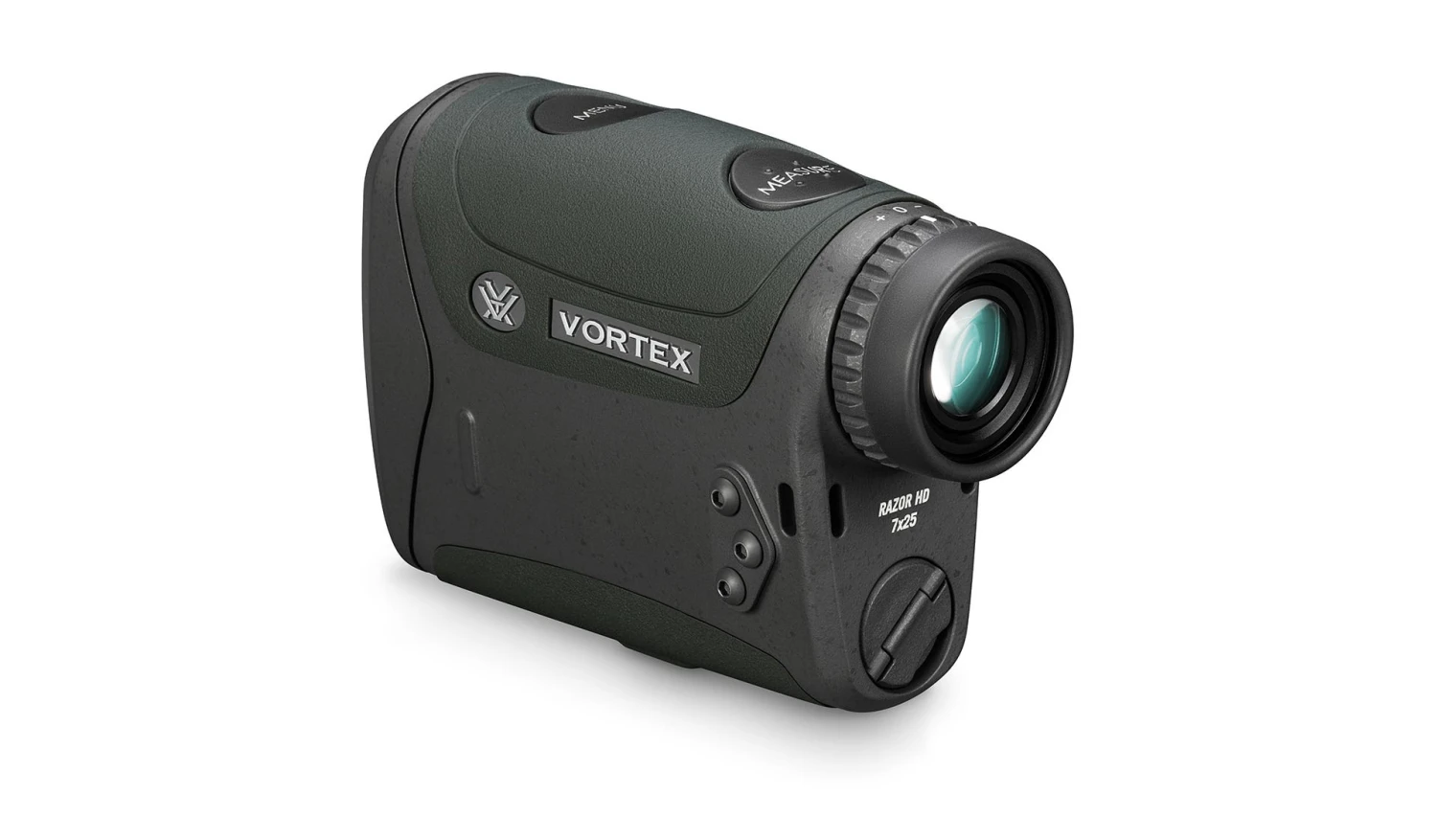

Vortex Razor HD 4000 Range Finder

The Razor HD 4000 is the essential companion for the extreme
hunter, archer and shooter. The extremely effective angle compensated laser
rangefinder features four targeting modes (Normal Mode, First Mode, Last Mode
and Extended Laser Range Mode) for any ranging environment. The primary HCD
(Horizontal Component Distance) range mode provides key angle compensated range
information required by the vast majority of shooters in a simple, quick to
read display. The Razor HD 4000 also has a LOS (Line of Sight) range mode and
scan feature.

Included in the Box

Carrying case

Lens cloth

Hex wrench

CR2 battery

Range Reflective (yards) 4000

Range Tree (yards) 2500

Range Deer (yards) 2200

Accuracy (= 199.9 yds) .5 yds

Accuracy (200 – 1000 yds) 1 yds

Accuracy (> 1000 yds) 2 yds

Max Angle Reading + / – 70 degrees

Magnification 7xObjective Lens Diameter 25 mm

Linear Field of View 341.25 ft @ 1,000 yds

Angular Field of View 6.5 degrees

Eye Relief 16-19 mm

Length 4.49 inches

Width 1.34 inches

Weight 9.9 oz

OPTICAL FEATURES

HD Optical System Optimized with select glass elements to
deliver exceptional resolution, cut chromatic aberration and provide
outstanding color fidelity, edge-to-edge sharpness and light transmission.

XR™ Plus Fully Multi-Coated Ultimate anti-reflective
coatings on all air-to-glass surfaces provide maximum light transmission for
peak clarity and the pinnacle of low-light performance.

CONSTRUCTION FEATURES

ArmorTek ® Ultra-hard, scratch-resistant coating protects
exterior lenses from scratches, oil and dirt.

Waterproof O-ring seals prevent moisture, dust and debris
from penetrating for reliable performance in all environments.

Rugged Design Built to handle tough situations. Compact and
lightweight.

Rubber Armor Provides a secure, non-slip grip, and durable
external protection.

Magnesium Chassis Decreases weight and increases strength.

PERFORMANCE FEATURES

ELR Ideal for ranging targets at extreme distances. A slightly
longer response time allows greatly extended range distances. Best used on a
tripod.

HCD Horizontal Component Distance (HCD) mode for angle
compensated ranging.

LOS Line of Sight (LOS) mode displays actual line of sight
range.

Scan This feature displays continual distance readings when
panning across a landscape or tracking a moving animal.

Easy-to-use Menu Intuitive, easy-to-use menus feature a
simple, clean illuminated display.

AWC ™ All Weather Capable ranging allows the unit to return
a distance even in a variety of adverse weather conditions.

Ranging Format Range in yards or meters.

HCD CORRECTED SHOOT-TO RANGE

The Razor HD 4000 uses HCD (Horizontal Component Distance)
angle-compensated ranging technology to give bow and rifle shooters the critical
distance data needed to make accurate shots.
