Even the most accurate rifle and scope combination is
rendered useless without the precise target range data the Ranger rangefinder
provides. Easy-to-use, the Ranger bucks the trend of overly complicated
electronics that are more of a hindrance in the field than they are an asset.
The built-in angle compensation is popular with treestand hunters looking to
get exact horizontal distance to a deer and long-range shooters who need to
calculate complex ballistic solutions with precise data. A utility clip keeps
these compact units close at hand for rapid deployment and each model is easily
adapted to any 1/4-20 tripod plate when a more rock steady base is required.

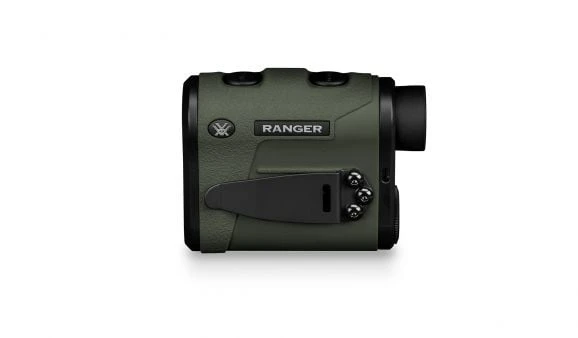

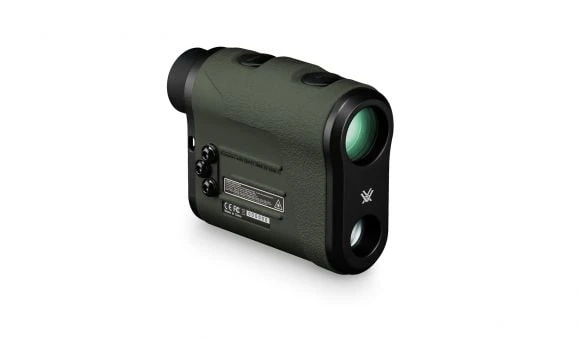

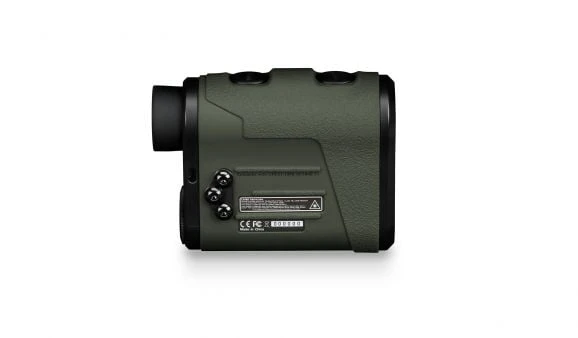

Compact, ergonomic and lightweight, the Ranger 1800 is easy to pack or hang
around your neck using the included lanyard. The adjustable utility clip
mounted to the body offers an innovative way to clip the unit to a belt,
pocket, or other flat edged surface for easy access. Clip can be mounted to
right or left side of the unit or completely removed. Runs on common CR2
battery.

UNLIMITED LIFETIME WARRANTY

FULLY TRANSFERABLE

NO RECEIPT NEEDED

Included in the Box

Utility
clip
Neck
lanyard
Soft
carry case
CR2
battery

Range Reflective (yards) 10-1800 yards

Range Deer (yards) 10-900 yards

Accuracy + / – 3 yards @ 1000 yards

Max Angle Reading + / – 60 degrees

Magnification 6x

Objective Lens Diameter 22 mm

Linear Field of View 315 feet/1000 yards

Angular Field of View 6 degrees

Eye Relief 17 mm

Length 3.9 inches

Width 3 inches

Weight 7.7 ounces

Product Manual (PDF) Download

OPTICAL FEATURES

Fully Multi-Coated Increase light transmission with multiple
anti-reflective coatings on all air-to-glass surfaces.

CONSTRUCTION FEATURES

Waterproof O-ring seals prevent moisture, dust and debris
from penetrating the binocular for reliable performance in all environments.

Rugged Design Built to handle tough situations. Compact and
lightweight.

Rubber Armor Provides a secure, non-slip grip, and durable
external protection.

Diopter Adjusts for differences in a user’s eyes. Located on
right eyepiece.

Tripod Adaptable Compatible with a tripod adapter, allowing
use on a tripod or car window mount.

PERFORMANCE FEATURES

HCD Horizontal Component Distance (HCD) mode for angle
compensated ranging.

LOS Line of Sight (LOS) mode displays actual line of sight
range.

Scan This feature displays continual distance readings when
panning across a landscape or tracking a moving animal.

Easy-to-use Menu Intuitive, easy-to-use menus feature a
simple, clean illuminated display.

Ranging Format Range in yards or meters.

RETICLE

HCD CORRECTED SHOOT-TO RANGE

The Ranger 1800 uses HCD (Horizontal Component Distance)
angle-compensated ranging technology to give bow and rifle shooters the
critical distance data needed to make accurate shots.
