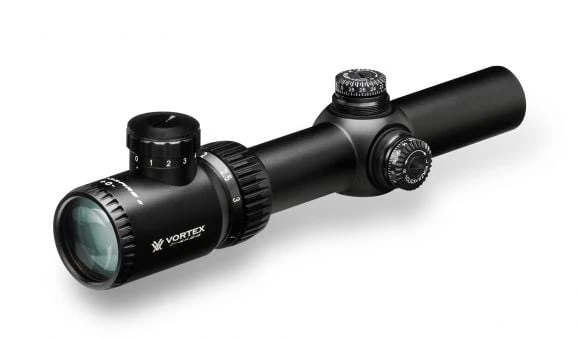

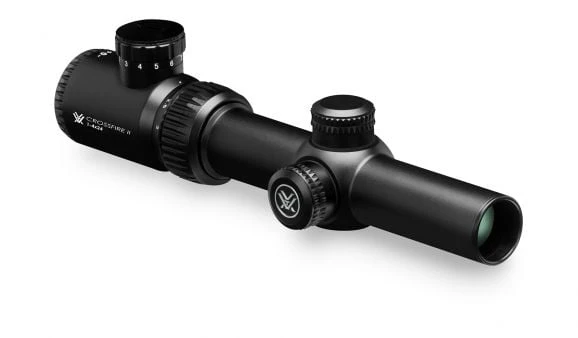

Vortex Crossfire II 1-4×24-V-Brite (MOA)

A 30mm tube diameter, 4x zoom and incredibly versatile
top-end magnification make this scope the perfect choice for an endless list of
rifle-topping tasks. Exceptionally clear fully multi-coated optics and a
superior build quality offered at a price point that will leave you scratching
your head, in a good way! What’s not to like? Answer: nothing!

Crossfire II 1-4×24-V-Brite (MOA) Dimensions (in inches)



Lengths
L1	L2	L3	L4	L5	L6
9.8	2.8	2.0	6.1	—	3.6



Heights
H1	H2
1.18	1.73



Dual use for Shooting
Tactical / Hunting

Included in the Box

• Removable
  lens covers

• Lens
  cloth



Magnification 1-4x

Objective Lens Diameter 24 mm

Eye Relief 4.0 inches

Field of View 96.1-24.1 ft/100 yds

Tube Size 30 mm

Turret Style Capped

Adjustment Graduation 1/2 MOA

Travel Per Rotation 30 MOA

Max Elevation Adjustment 100 MOA

Max Windage Adjustment 100 MOA

Parallax Setting 100 yards

Length 9.8 inches

Weight 14.8 oz

Product Manual (PDF) Download

OPTICAL FEATURES

Fully Multi-Coated Proprietary coatings increase light
transmission with multiple anti-reflective coatings on all air-to-glass
surfaces.

Second Focal Plane Reticle Scale of reticle maintains the
same ideally-sized appearance. Listed reticle subtensions used for estimating
range, holdover and wind drift correction are accurate at the highest
magnification.

CONSTRUCTION FEATURES

Tube Size 30 mm diameter provides maximized internal
adjustment and strength.

Single-Piece Tube Maximizes alignment for improved accuracy
and optimum visual performance, as well as ensures strength and waterproofness.

Aircraft-Grade Aluminum Constructed from a solid block of
aircraft-grade aluminum for strength and rigidity.

Waterproof O-ring seals prevent moisture, dust and debris
from penetrating the binocular for reliable performance in all environments.

Fogproof Nitrogen gas purging prevents internal fogging over
a wide range of temperatures.

Shockproof Rugged construction withstands recoil and impact.

Hard Anodized Finish Highly durable hard-coat anodization
provides a low-glare matte surface and helps camouflage the shooter’s position.

Capped Reset Turrets Allow quick re-indexing of the turret
(no tool needed) to zero after sighting in the riflescope. Caps provide
external protection for turret.

CONVENIENCE FEATURES

Fast Focus Eyepiece Allows quick and easy reticle focusing.

RETICLE





V-Brite (MOA)

Uses the V-Plex format along with battery-powered
electronics to illuminate the center dot for better low-light performance. Good
for hunters/shooters during extra-low light conditions.

Subtension detail for Crossfire II 1-4×24 riflescope with V-Brite
MOA reticle.





OUR VIP WARRANTY IS
ABOUT YOU, NOT US.

VIP stands for a Very Important Promise to you, our
customer. We will repair or replace your Vortex® product in the event it
becomes damaged or defective—at no charge to you. If we cannot repair your
product, we will replace it with a product in perfect working order of equal or
better physical condition.

You see, it doesn’t matter how it happened, whose fault it
was or where you purchased it. If you ever have a problem, no matter the cause,
we promise to take care of you. You can count on the VIP Warranty for all
Vortex Optics riflescopes, prism scopes, red dots, rangefinders, binoculars,
spotting scopes, tripods and monoculars.

UNLIMITED LIFETIME
WARRANTY

FULLY TRANSFERABLE

NO RECEIPT NEEDED

The VIP Warranty does not cover loss, theft, deliberate
damage or cosmetic damage that does not hinder the performance of the product.
